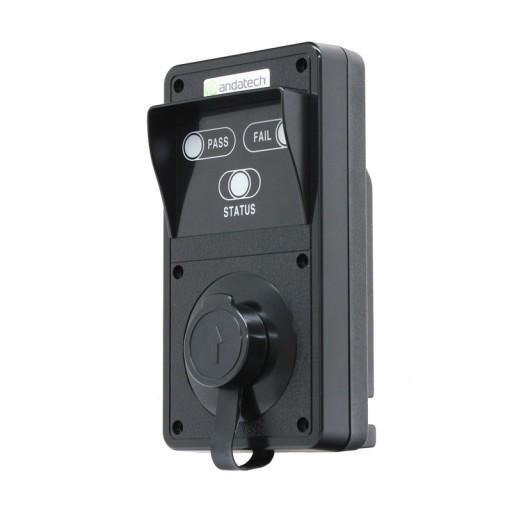

Andatech AccessPoint Wall-Mounted Breathalyser

SKU: ALS-ACCESSPOINT
$1,350
Tax included Shipping calculated at checkout.

Description

Wall mounted breathalyser compatible with various control access systems. Fast breath alcohol test before entrance. No mouthpiece required.

Specifications

  • Sensor type
    Replaceable fuel cell sensor
  • Testing mode
    Passive testing
  • Accuracy
    ±0.005%BAC at 0.050%BAC
  • Response time
    3 seconds
  • Recovery time
    5 seconds
  • Calibration frequency
    Unlimited tests, every 12 months
  • Power supply
    12V / 1.5A (power adaptor not supplied)
  • Weight
    674g
  • Dimensions
    H: 20.6cm, W: 10.8cm, D: 3.7cm
  • Warranty

    3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee

  • Includes
    Includes Andatech AccessPoint, user manual, brackets, connecting cable including power switch, dust cover for sampling port, screws for assembly.

Downloads

Control access based on blood alcohol concentration

Mandatory blood alcohol concentration test at the entrance.

andatech_accesspoint_access_control_breathalyser_features
  • Danger icon

    Access control system

    Allow access only if blood alcohol concentration is within the 'pass' range.

  • Light bulb icon

    Pass / fail indicators

    Adjustable 'pass' range for blood alcohol concentration based on your company's alcohol testing policy.

  • Bullseye icon

    Accurate & Reliable

    Accuracy of ±0.005%BAC at 0.050%BAC.

  • Fast icon

    Fast passive tests

    Test 12 subjects in 1 minute.

  • Wind icon

    No mouthpiece required

    Blow directly into the the sampling port for passive testing.

  • exchange icon

    No calibration downtime

    Replaceable sensor allows the breathalyser to function when one is sent for calibration.

How to use the Andatech AccessPoint Wall-Mounted Breathalyser

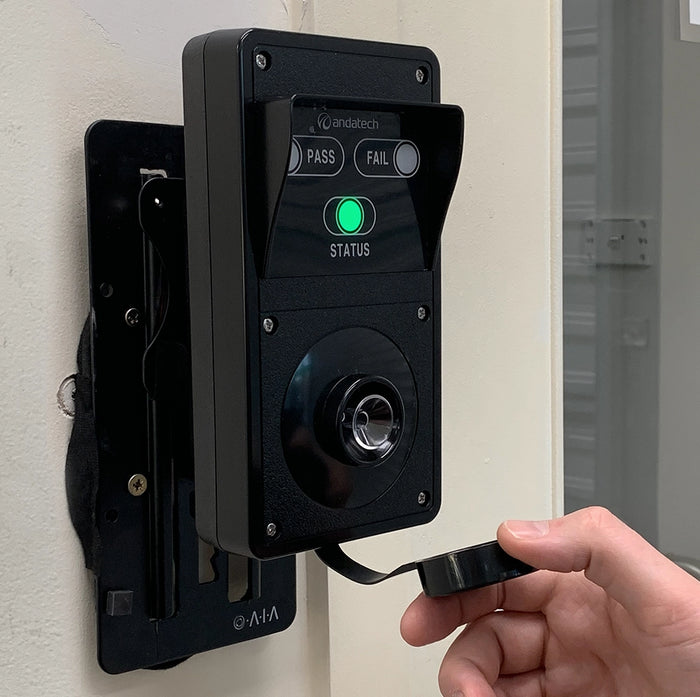

  • Open Andatech AccessPoint wall-mounted breathalyser port cover

    1. Open the sampling port cover and make sure that the 'STATUS' light is green.

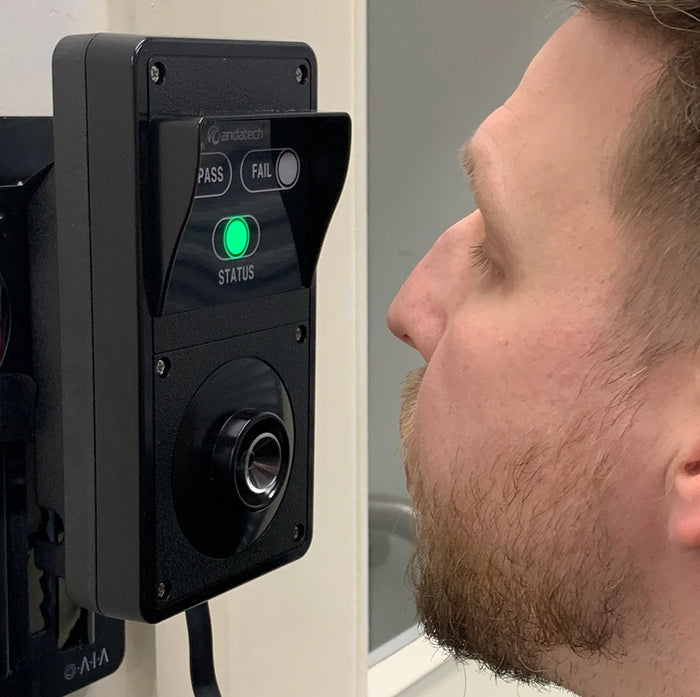

  • Blow into the Andatech AccessPoint wall-mounted breathalyser

    2. Blow into the sampling port. Pass or fail indicator light will blink accordingly.

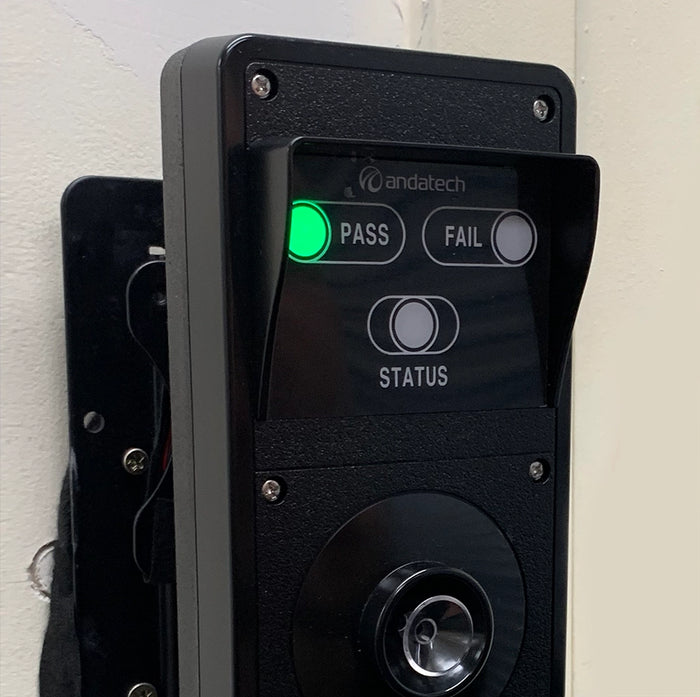

  • Pass or fail will be displayed on the Andatech AccessPoint wall-mounted breathalyser

    3. The Accesspoint grants entry for a PASS result, and denies entry for FAIL results.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Compare Andatech Breathalysers

View and compare all bestselling Andatech workplace breathalysers below

A table comparing the facets of 4 products
Facet
Andatech AccessPoint wall mounted breathalyser with access control
Andatech AccessPoint Wall-Mounted Breathalyser
Andatech AccessPoint FRX facial reconition breathalyser with temperature screening and access control system
Andatech AccessPoint FRX Temperature Screening Device

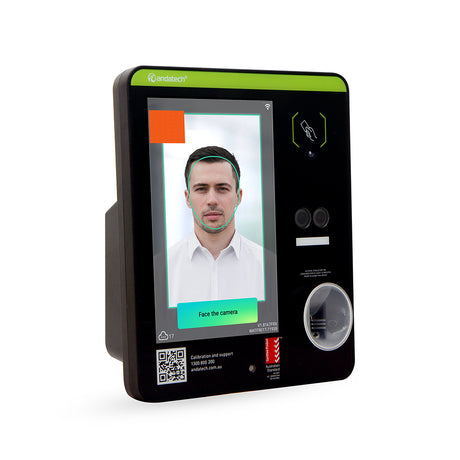

Andatech Soberlive FRX breathalyser with facial recognition and temperature screening
Andatech Soberlive FRX Wall-Mounted Breathalyser
Andatech Soberpoint 3 Lite wall mounted breathalyser
Andatech Soberpoint 3 Wall-Mounted Breathalyser
Price
Price
$1,350
Get a quote
Get a quote
Get a quote
Summary
Summary
For access control. No mouthpiece required
Facial recognition & Andalink compatible
Facial recognition, RFID access. Andalink compatible
Public use breathalyser. Coin & wave payment options
Memory
Memory
-
20,000 registered faces / 20,000 test results
10,000 registered faces, 20,000 test results. Sync data with Andalink.
-
Accuracy
Accuracy
±0.005%BAC at 0.050%BAC
Accuracy within +/- 0.3°C
±0.005g/210L for readings up to 0.100g/210L
±0.005%BAC at 0.100%BAC
Testing Mode
Testing Mode
Passive testing
-
Specific testing, Passive testing
Specific testing
Response Time
Response Time
3 seconds
Under 1 second
Within 5 seconds
Within 6 seconds
Recovery Time
Recovery Time
5 seconds
-
1 second / 20-30 seconds for facial recognition and temperature screening
10 seconds
Display
Display
-
8” TFT LCD
LCD screen
LCD screen
Connectivity
Connectivity
-
Ethernet, Wi-Fi, 4G (optional)
Ethernet, Wi-Fi, 4G (optional)
-
Features
Features
-
Andalink
Andalink, Photo verification
-
Calibration Frequency
Calibration Frequency
Unlimited tests, every 12 months
-
Unlimited tests, every 12 months
Unlimited tests, every 6 months
Power Supply
Power Supply
12V / 1.5A (power adaptor not supplied)
Input: AC 100-240V 50-60Hz 0.8A / Output: DC 12V 3A
AC: 100-240V 50-60Hz / DC: 12V 3A
AC: 110-240V 50-60Hz, 1A input / DC: 12V, 3A output
Weight
Weight
674g
1,280g
1243g including batteries
3500g including batteries
Dimensions
Dimensions
H: 20.6cm, W: 10.8cm, D: 3.7cm
H: 23.7cm, W: 12.7cm, D: 1.8cm
H: 220mm, W: 200mm, D: 88mm
H: 330mm, W: 255mm, D: 90mm
Warranty
Warranty

3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee

1 year

3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee

3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee

Includes
Includes
Includes Andatech AccessPoint, user manual, brackets, connecting cable including power switch, dust cover for sampling port, screws for assembly.
Includes Andatech AccessPoint FRX, user manual, USB cable, TTL, RS232 cable, switch signal.

Includes Andatech Soberlive FRX, power cable, RS232 cable, user manual, 2 straw adaptors, 5 sampling cups, 2 keys (unlock to connect to bracket), 2 screws, 2 wall plugs.
Includes Andatech Soberpoint 3, power cable, user manual.
