Andatech GT user manual

Thank you for purchasing the Andatech GT fuel cell breathalyser.

Components

Contents: Breathalyser, mouthpieces (x5), AAA Battery (x1), Keyring (x1) and quick guide.

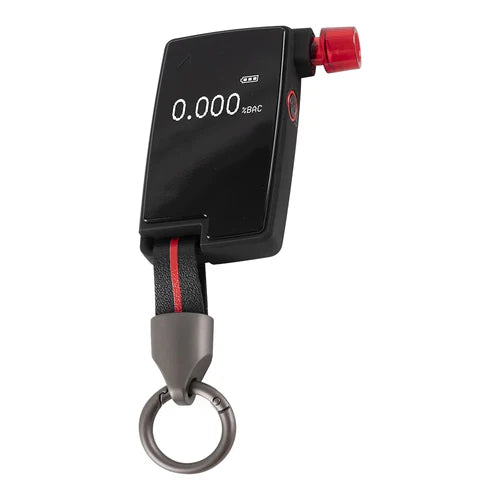

How to attach the keyring

1. Detach the round clasp from the body of the keyring
2. Pull out the body from the strap
3. Unfold the strap and loop it into the keyring hole on the breathalyser
4. Close the strap
5. Replace the body over the strap
6. Replace the round clasp into the body of the keyring

Operating instructions

Step 1

Press the power button to switch on the breathalyser. The Andatech logo will display during startup, followed by the previous test result.

Step 2

Wait a few seconds while the breathalyser warms up to prepare for the test.

Step 3

“BLOW” will display on the screen when the breathalyser is ready to take a test.

Insert a mouthpiece into the breathalyser’s mouthpiece slot.

Blow steadily into the mouthpiece for more than 3 seconds to take a test.

Step 4

The sampled breath will be analysed to measure the blood alcohol concentration.

Step 5

The alcohol breath test result will be displayed for 10 seconds.

Changing measurement units

When the test result is being displayed, press the power button briefly to cycle the measurement display units (%BAC -> g/210L) and change the result value accordingly.

Taking another test

Press the power button for 1 second to take another test.

Power off

The breathalyser will turn off automatically if not in use for 10 seconds.

Alternatively, hold down the power button for 3 seconds to switch it off manually.

The breathalyser screen will show “POWER OFF” and then shut down.

Warning display

Blow error

This message appears when the breath sample is insufficient.

The OLED screen will alternate between "BLOW ERROR" and "Blow steadily for 3 seconds."

To retry, briefly press the power button and retake the measurement.

Low battery

Replace with a new AAA alkaline battery.

CAL

Calibration reminder displayed after 1,000 tests.

Please contact the service center for calibration.

Sensor issue detected

Please contact the service center for inspection.

Breath sampling issue detected

Please contact the service center for inspection.

Temperature out of range (5-40°C)

Please operate within the recommended range.

Warnings

1. Allow at least 20 minutes after eating or drinking before testing. Any type of alcohol remaining in the mouth of saliva may interfere with proper testing and requires about 20 minutes to disperse. This includes alcohol-based mouthwash or similar products.
2. Avoid testing in high wind conditions or in poorly ventilated or enclosed spaces. Poor ventilation may also lengthen the time required for warm up between tests.
3. Do not blow smoke, saliva or other contaminants into the mouthpiece, as the sensor may become damaged. Wait at least 20 minutes after smoking before conducting a test.
4. Do not use the breathalyser as a tool to drink and drive.
5. Do not blow fluid into the instrument as it will damage the sensor and void your warranty.
6. Do not store in an extreme environment where high temperature or high humidity exists. Keep out of the reach of children.
7. To maintain accuracy, we recommend professional recalibration every 6 months.
8. Blood alcohol concentration can continue to rise for up to 2 hours after the cessation of drinking. If a caution result or a result is close to the designated BAC, it is recommended to wait and retest after 20 minutes.
9. It can take 10 hours or more for the alcohol level to return to a zero after a high blood alcohol level has been reached. A further test should be carried out later in the day of the following morning.
10. User-serviceable batteries safety:

• Do not dispose of batteries in a fire.
• Do not recharge a battery unless it is specifically marked “rechargeable”.
• Do not expose the breathalyser or batteries to heat source.
• Do not mix old and new batteries, or mix different types or makes of batteries.
• Do not allow children to play with the batteries.

Recalibration & Service

The Andatech GT uses a fuel cell sensor to measure breath alcohol levels.

Depending upon the amount of alcohol registered by the sensor after a period of time, it will require recalibration. Andatech recommends the Andatech GT is calibrated every 1,000 tests or 6 months, whichever comes first.

Warranty

The manufacturer warrants for 3 years from the date of purchase, the product to be free from defects in workmanship or material (excluding recalibration) under normal use. The manufacturer’s obligation under this warranty is limited to replacing, adjusting or repairing the unit if returned along with proof of purchase.

This warranty is void if the unit has been tampered with, damaged or abused in any way.

Lifetime Guarantee

Calibrate your breathalyser every 6 months from the date of purchase and extend the manufacturer's warranty up to a lifetime.

Learn more about the Andatech Guarantee

Warranty Details

Congratulations on your purchase! It is our aim to provide you with quality products that you can trust. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The Guarantee

The product is guaranteed to be free from defects in workmanship and parts for a period of 3 years from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Trade Practices Act and similar state laws.

Proof of Purchase

This warranty is valid for the original purchase and is not transferable. Please keep your purchase docket or receipt as proof of purchase and as proof of date on which the purchase was made. The purchase docket (or a copy) or receipt must be presented with the warranty when making a claim under this warranty.

Service during the Warranty Period

To claim for warranty, contact us on 1300 800 200 or support@andatech.com.au to get an RA# (Return Authorisation Number) or submit a support ticket on my.andatech.com.au. Ensure that the RA# is clearly stated on the outside of the packaging and that the product is properly packaged so that no damage occurs to the product during transit. Shipping of the product back to us for warranty will be at your cost. A product return without the RA# will not be accepted.

Extent of Warranty

This warranty is limited to defects in workmanship or parts. All defective products or parts will be repaired or replaced. This warranty does not cover manuals and packaging.

Normal Wear and Tear

This warranty does not cover normal wear and tear to the product or parts.

Exclusions

This warranty does not cover:

• Calibration costs
• Any defect caused by an accident, misuse, abuse, improper operation, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by the distributor.
• Any product that has been damaged by a lightning strike either directly or indirectly or a main power surge or liquid ingress.
• The product if it is located outside of Australia.
• Any damage caused by improper power input or improper cable connection.

Warranty Registration

Register your Andatech GT breathalyser online on Andatech Caltrace
