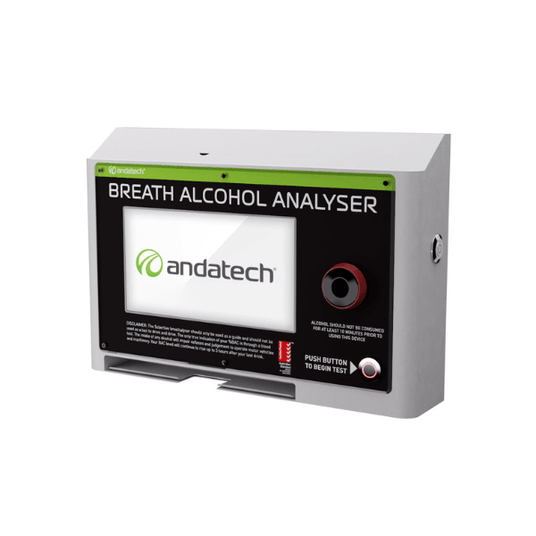

Andatech Soberlive user manual

Thank you for purchasing the Andatech Soberlive breathalyser.

Refer to the letter included with your device for a link to the full user manual with advanced settings and Andalink guide for the Andatech Soberlive breathalyser.

If you require further assistance, please do not hesitate to contact our support team.

Soberlive Setup

Installation

1. Unpack the Soberlive unit and its accessories from its packaging.
2. Drill holes onto a wall. Ensure it is near a power outlet and in an area with sufficient Wi-Fi coverage.
3. Unlock the back cover using the key provided with the unit. Connect the power cable and plug to the back of the Soberlive and plug into a power outlet.
4. Use provided screws to attach the Soberlive to the wall.
5. Close the Soberlive unit and lock the cover into place. Ensure to keep the key in a secure place.
6. Switch on the power at the power outlet. The Soberlive will start up and the login page will load.
7. Log in with an Admin or Manager account to access the admin panel.

Date, time & wi-fi setup

Important Note to Administrators / Managers: Ensure that the time and date on the Soberlive is always set correctly.

1. Tap on the Wi-Fi icon.
2. The Wi-Fi screen will show the current date and time of the device on the top right of the screen.
   Tap on “Time Settings” to enter the Wi-Fi and Time and Date settings.
3. Scroll up the left menu to the “Wi-Fi” setting.
   Switch Wi-Fi to “ON”.
   Select your preferred Wi-Fi network from the list and connect to it.
4. If your device time is wrong, then scroll down the left menu and tap on “Date & time”. Make sure “Automatic date & time” is ticked. Click on “Select Time Zone” and select the correct time zone.
   After these steps, unplug the main power cable of the Soberlive device and then plug it back in.

Operating Guide

1. Log in to a user account on the Soberlive using an ID and PIN.
   For guest users, just click "GUEST LOGIN" to take a test (no ID and PIN is required).
   Note: This option will only appear if "Allow Guest" is enabled in the Location or Soberlive settings.
2. Push the button on the Soberlive to begin a test.
3. Remove a straw from the straw outlet and place one end into the sampling hole.
4. Blow into the straw for 4 seconds or until the reading is complete.
5. The Soberlive screen will display the results.
