Andatech Soberlive Wall-Mounted Breathalyser

SKU: ALS-SOBERLIVE

Request a quote

AS3547:2019

Certified to the latest Australian Standard

12 months

Calibration frequency

Description

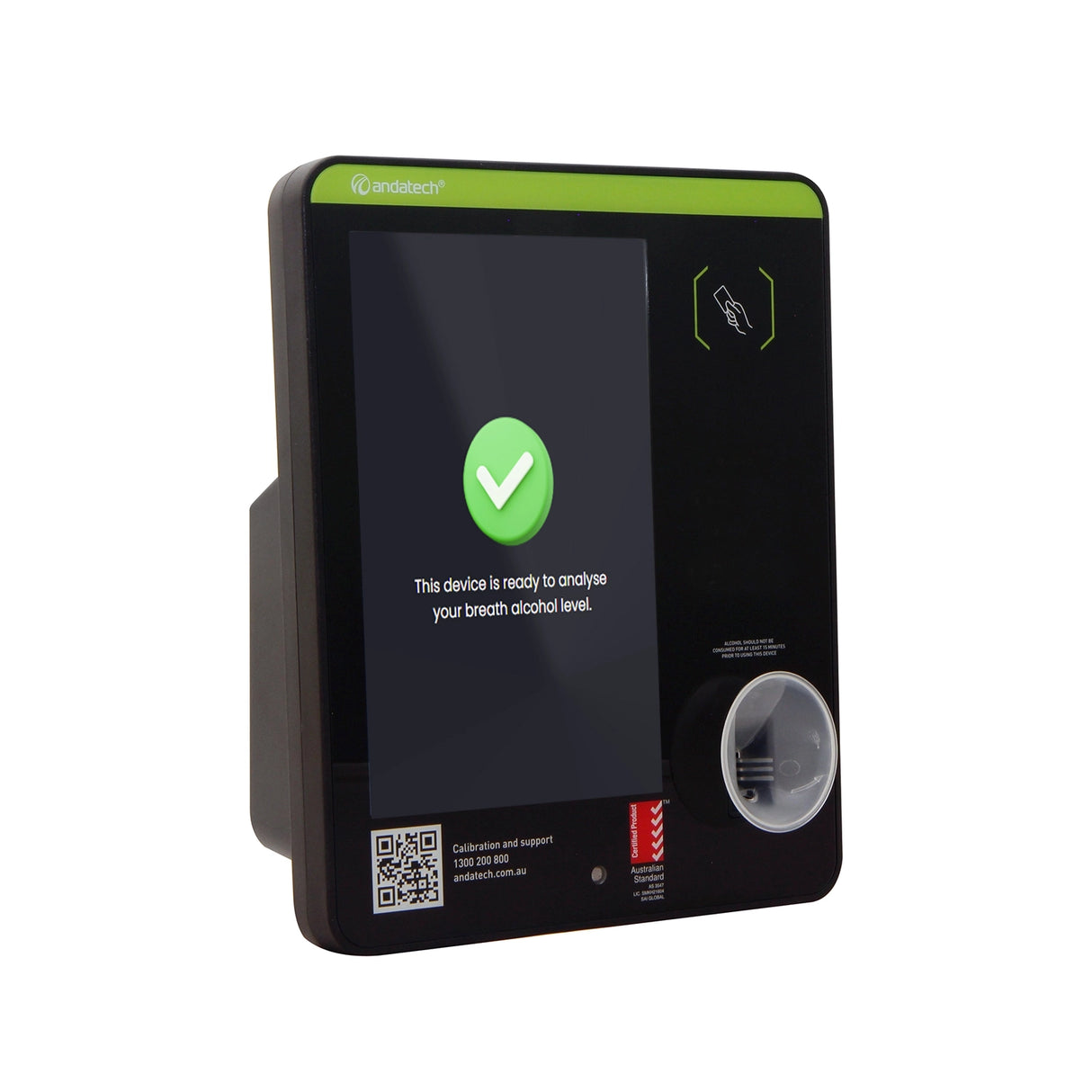

Wall mounted breathalyser with RFID card reader for user verification during breath alcohol tests. Sync test data to the cloud via Andalink.

Specifications

Sensor type

Replaceable Fuel Cell Sensor
Testing mode

Specific testing, Passive testing
Accuracy

±0.005g/210L for readings up to 0.100g/210L
Response time

Within 5 seconds
Recovery time

1 second
Memory

20,000 test results. Sync data with Andalink.
Connectivity

Ethernet, Wi-Fi
Software

Andalink
Calibration frequency

Unlimited tests, every 12 months
Display

LCD screen
Power supply

AC: 100-240V 50-60Hz / DC: 12V 3A
Weight

1243g including batteries
Dimensions

H: 220mm, W: 200mm, D: 88mm
Warranty

3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee
Includes

Includes Andatech Soberlive FRX, power cable, RS232 cable, user manual, 2 straw adaptors, 5 sampling cups, 2 keys (unlock to connect to bracket), 2 screws, 2 wall plugs.

Downloads

📄 Andatech Soberlive User Manual

📄 Andatech Soberlive Fact Sheet

Contactless alcohol breath testing on-site

Accurate & reliable

Accuracy of ±0.005 g/210L at 0.100 g/210L. Australian Standard AS3547:2019 certified.
Fast passive & specific tests

Response time of 5 seconds and recovery time of <30 seconds before the next test.
Centralised data in one place

Secure breath alcohol test data management through Andalink for multiple breathalysers.
Automatic alerts & reports

Email notification for regular reporting and alerts for test results over a set limit.
No calibration downtime

Replaceable sensor allows the breathalyser to function when one is sent for calibration.

Breath alcohol screening that suits your needs

Opt for back-to-basics or additional features for advanced uses.

RFID card reader

Link alcohol test results to staff IDs for fast, accurate tracking and seamless system integration.

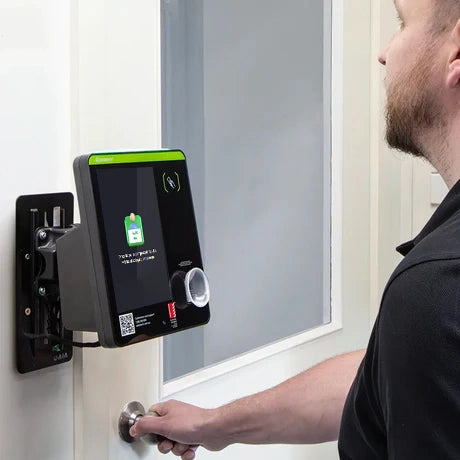

Door access control system

Connect the Soberlive breathalyser with existing door access systems to track attendance and grant or deny entry based on an employee's BrAC result.

Customise it for your alcohol-testing application

The Soberlive can be wall-mounted or installed in various configurations to suit your needs.

Scan your card

Scan your RFID card on the Soberlive.
*If RFID is not enabled, skip to step 2.
Blow into the breathalyser

When prompted, blow into the straw or sampling cup on the breathalyser.
Get alcohol test results

Test results will be displayed on the screen and the door access (if connected) will be enabled/disabled depending on the result.
Testing complete!

The test result data will be synced with Andalink online.

Compare Andatech Breathalysers

View and compare all bestselling Andatech workplace breathalysers below

A table comparing the facets of 4 products
Facet	Andatech Soberlive Wall-Mounted Breathalyser	Andatech Soberlive FRX Wall-Mounted Breathalyser	Andatech Soberpoint 3 Wall-Mounted Breathalyser	Andatech AccessPoint Wall-Mounted Breathalyser
Price
Price	Get a quote	Get a quote	Get a quote	$1,350
Summary
Summary	RFID access. Andalink compatible	Facial recognition, RFID access. Andalink compatible	Public use breathalyser. Coin & wave payment options	For access control. No mouthpiece required
Certification
Certification	Certified to AS 3547:2019	Certified to AS 3547:2019	Certified to AS 3547:1997	-
Calibration Frequency
Calibration Frequency	Unlimited tests, every 12 months	Unlimited tests, every 12 months	Unlimited tests, every 6 months	Unlimited tests, every 6 months
Memory
Memory	20,000 test results. Sync data with Andalink.	10,000 registered faces, 20,000 test results. Sync data with Andalink.	-	-
Accuracy
Accuracy	±0.005g/210L for readings up to 0.100g/210L	±0.005g/210L for readings up to 0.100g/210L	±0.005%BAC at 0.100%BAC	±0.005%BAC at 0.050%BAC
Testing Mode
Testing Mode	Specific testing, Passive testing	Specific testing, Passive testing	Specific testing	Passive testing
Response Time
Response Time	Within 5 seconds	Within 5 seconds	Within 6 seconds	3 seconds
Recovery Time
Recovery Time	1 second	1 second / 20-30 seconds for facial recognition and temperature screening	10 seconds	5 seconds
Display
Display	LCD screen	LCD screen	LCD screen	-
Camera
Camera	-	1 megapixels	-	-
Connectivity
Connectivity	Ethernet, Wi-Fi	Ethernet, Wi-Fi, 4G (optional)	-	-
Features
Features	Andalink, Wi-Fi, Built-in memory	Andalink, Photo verification	-	-
Power Supply
Power Supply	AC: 100-240V 50-60Hz / DC: 12V 3A	AC: 100-240V 50-60Hz / DC: 12V 3A	AC: 110-240V 50-60Hz, 1A input / DC: 12V, 3A output	12V / 1.5A (power adaptor not supplied)
Weight
Weight	1243g including batteries	1243g including batteries	3500g including batteries	674g
Dimensions
Dimensions	H: 220mm, W: 200mm, D: 88mm	H: 220mm, W: 200mm, D: 88mm	H: 330mm, W: 255mm, D: 90mm	H: 20.6cm, W: 10.8cm, D: 3.7cm
Warranty
Warranty	3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee	3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee	3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee	3 years, extendable up to 8 years (on the sensor) under the Andatech Guarantee
Includes
Includes	Includes Andatech Soberlive FRX, power cable, RS232 cable, user manual, 2 straw adaptors, 5 sampling cups, 2 keys (unlock to connect to bracket), 2 screws, 2 wall plugs.	Includes Andatech Soberlive FRX, power cable, RS232 cable, user manual, 2 straw adaptors, 5 sampling cups, 2 keys (unlock to connect to bracket), 2 screws, 2 wall plugs.	Includes Andatech Soberpoint 3, power cable, user manual.	Includes Andatech AccessPoint, user manual, brackets, connecting cable including power switch, dust cover for sampling port, screws for assembly.
